Shower Enclosure & Bathtub Installation Guide (with Diagrams)
Proper installation protects your warranty and prevents leaks. Follow these illustrated steps, then download the full PDF manual for your model.
1. Prepare the site
Confirm the opening is square, level and waterproofed. Mark the fixing points on the wall according to the template.

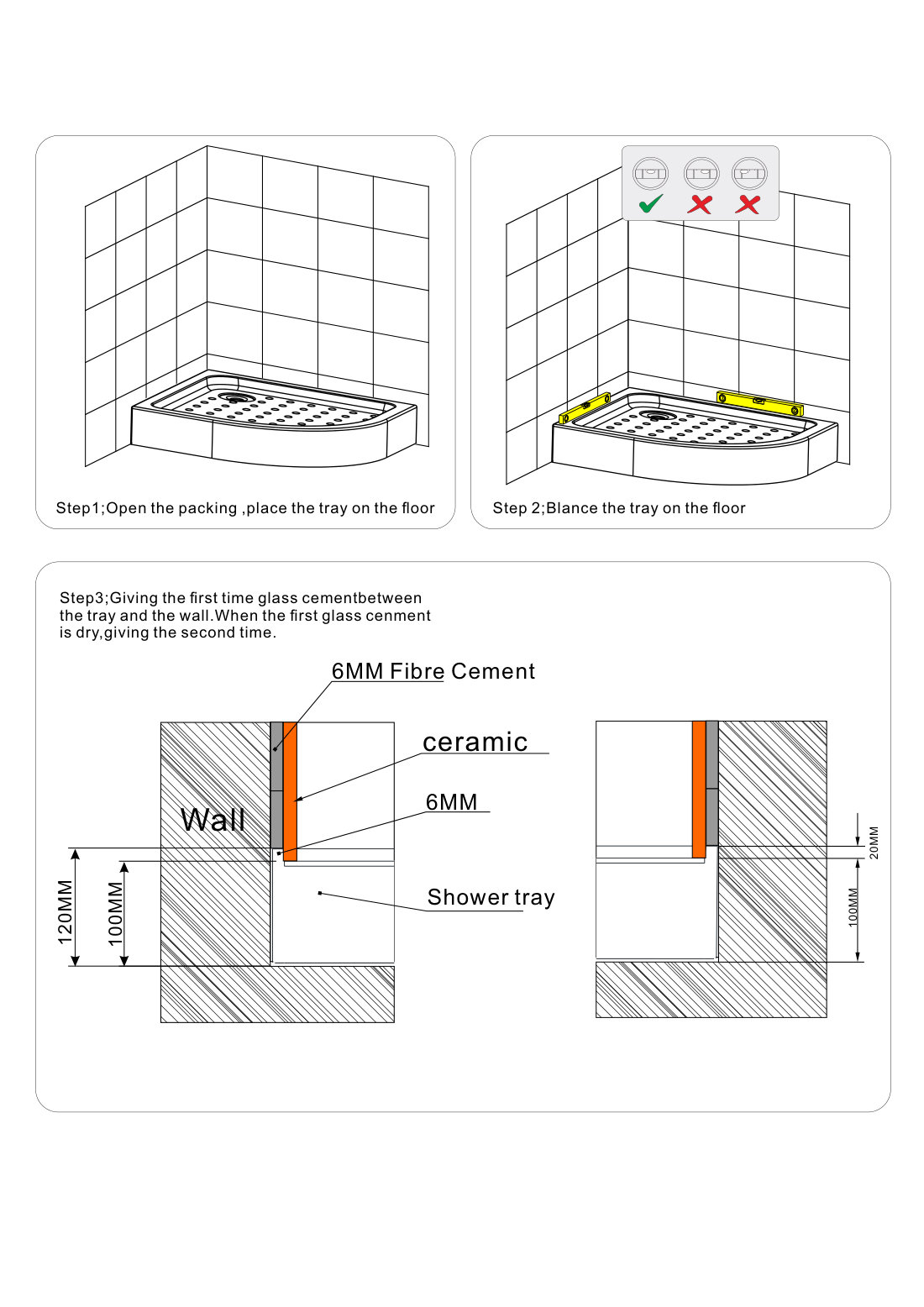

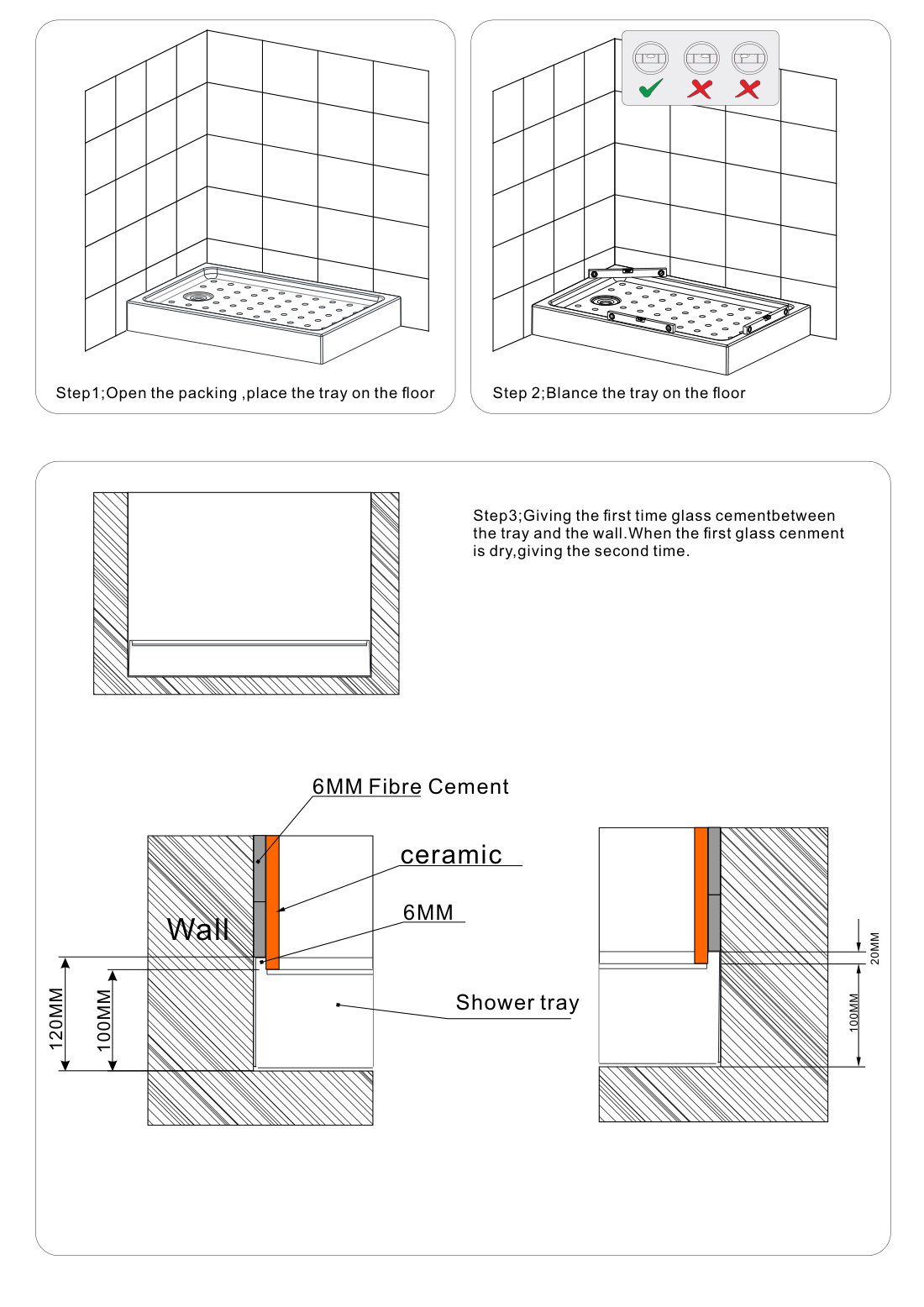

2. Install the base tray
Set the tray on a level mortar bed, connect the drain, and seal the edge with silicone. Let the sealant cure before use.

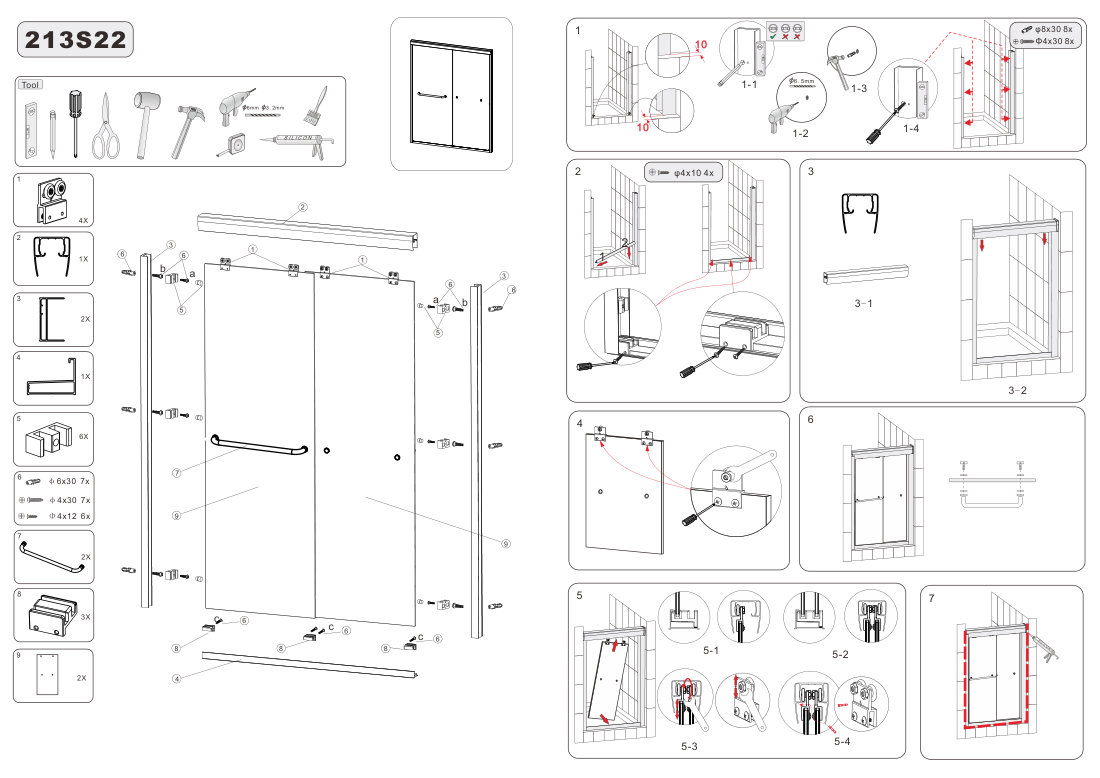

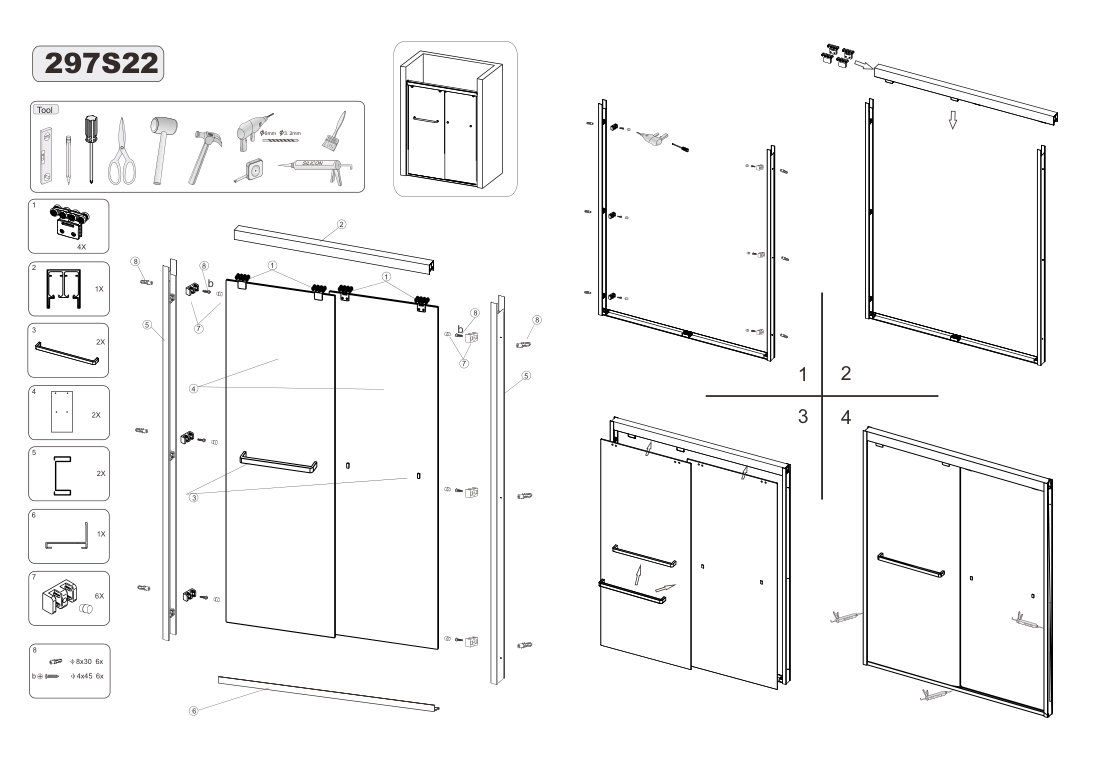

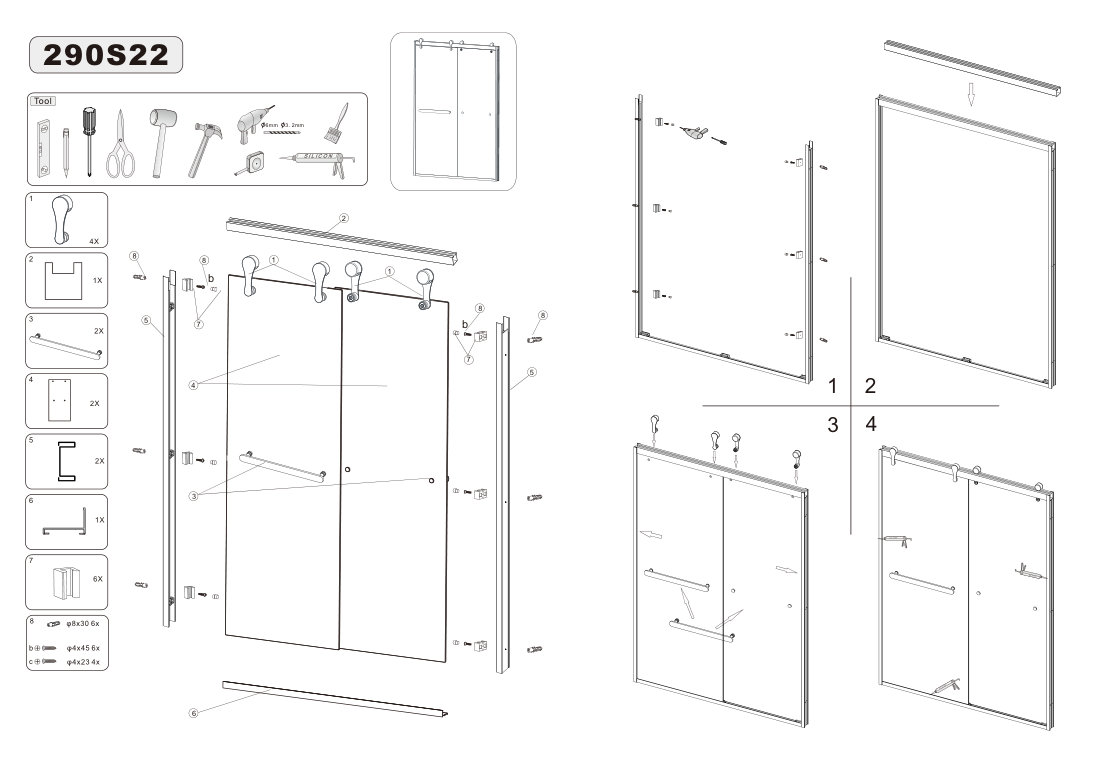

3. Fit the glass door
Attach the top rail and wall profiles, hang the glass panels on 304 stainless rollers, adjust alignment and fit the handles.
4. Seal & test
Apply silicone along all joints, fit the magnetic seals, then run water for 10 minutes to check for leaks.
Bathtub installation
Place the tub, connect the drain and overflow, seal the rim, and verify levelling before tiling over the flange.
